Boom Barrier - SOSEC 200 for Smart Access |
Control in Saudi Arabia
*Images are for illustrative purposes. Actual product appearance and specifications may vary.
Product Overview

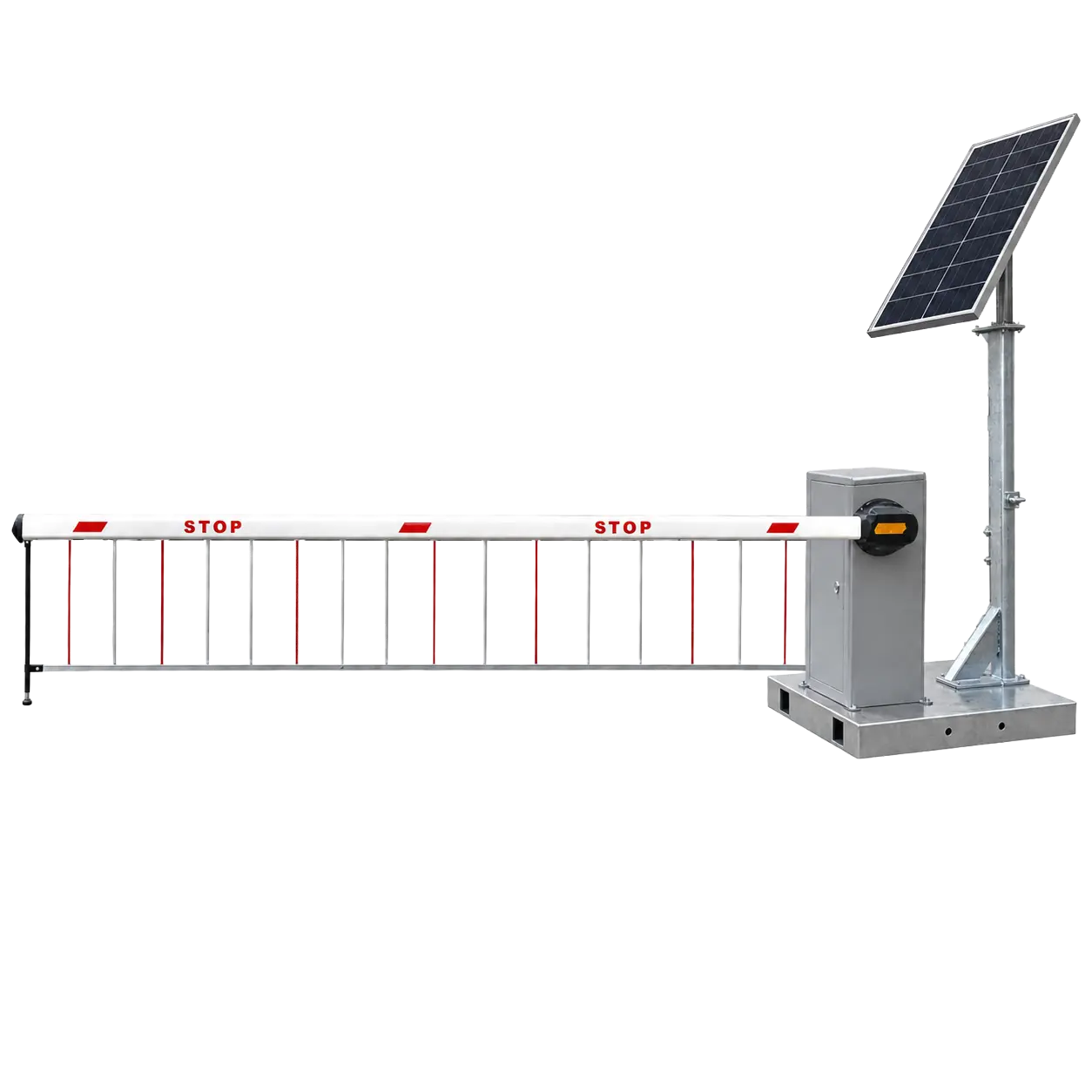

Boom Barrier - SOSEC 200
Boom Barrier - SOSEC 200 is a portable solar boom barrier that is designed for temporary vehicle access, emergency traffic routes and controlled traffic flow on challenging sites in Saudi Arabia.
- Accesses the vehicle using an illuminated five-metre-long RGB boom.
- The tread plate, which is portable and can be set up at 1.3 x 1.3 metres, offers stable, non-permanent deployment.
- Depending on external power supply and extensive civil infrastructure is kept to a minimum with solar-powered stand-alone operation.
- Capable of up to 900 operating cycles a day under appropriate site, battery and environmental conditions.
- Extended battery configuration can offer up to one month of battery backup for use, depending on the usage.
- Non-contact safety sensing to prevent closing while detecting a car or another object.
- Works with intercoms, key fobs, code keypads, swipe cards and auto-exit devices.
- The capability of the telematic app provides remote monitoring and visibility of the operation.
Performance Standards & Compliance
The Boom Barrier – SOSEC 200 can be ordered to meet relevant Saudi and international performance requirements.
Boom Barrier - SOSEC 200
Requirements in Saudi Arabia
The SOSEC 200 is a controlled vehicle access solution for construction sites, emergency routes, events and other controlled areas. The system shall be supplied and installed in Saudi Arabia based on the accepted technical submittal, manufacturer's instructions, project specification and Saudi requirements.
-
SASO / SABERSASO / SABER – Saudi Product Conformity RequirementsThe products and components applicable shall meet the relevant technical regulations of the SASO. Conformity Certificates (Product and Shipping) shall be issued on SABER platform as applicable for importation and access to the Saudi market.
-
ASTM A36 / ASTM A653ASTM A36 / ASTM A653 – Steel Material and Galvanized CoatingASTM A36 is used for structural carbon-steel plates, shapes, and bars, and ASTM A653 is used for hot-dip zinc-coated or zinc-iron-alloy-coated steel sheets. Each individual component of the barrier shall be selected based on the material and form used for that barrier.
-
ASTM B117ASTM B117 – Salt-Spray Corrosion Resistance TestDescribes the apparatus, procedure and controlled salt-fog conditions employed to test the corrosion performance of coated metal parts. The specific amount of exposure time and criteria for acceptance shall be identified in the project requirements.
-
IEC 60529IEC 60529 – Ingress Protection RatingDescribes the solid object, dust and water resistance levels that enclosures offer using the IP Code. The IP rating of the control cabinet and electrical components must be backed up by a suitable test certificate or report.
Technical Specifications of Boom Barrier - SOSEC 200
| Specification | SOSEC 200 Details |
|---|---|
| Product type | Portable automatic boom barrier |
| Boom length | 5 metres |
| Boom design | Illuminated RGB boom |
| Mounting system | Portable tread-plate base |
| Tread-plate size | 1.3 × 1.3 metres |
| Power source | Standalone solar-powered system |
| Battery system | Large, customizable battery configuration |
| Extended backup | Up to one month, subject to configuration and usage |
| Operating capacity | Up to 900 cycles per day |
| Safety system | Non-contact obstacle detection |
| Access options | Intercom, key fob, keypad, swipe card and auto-exit |
| Smart functionality | Compatible telematic app options |
| Installation type | Portable and relocatable |
| Main applications | Construction, highways, mining, retail, events and emergencies |

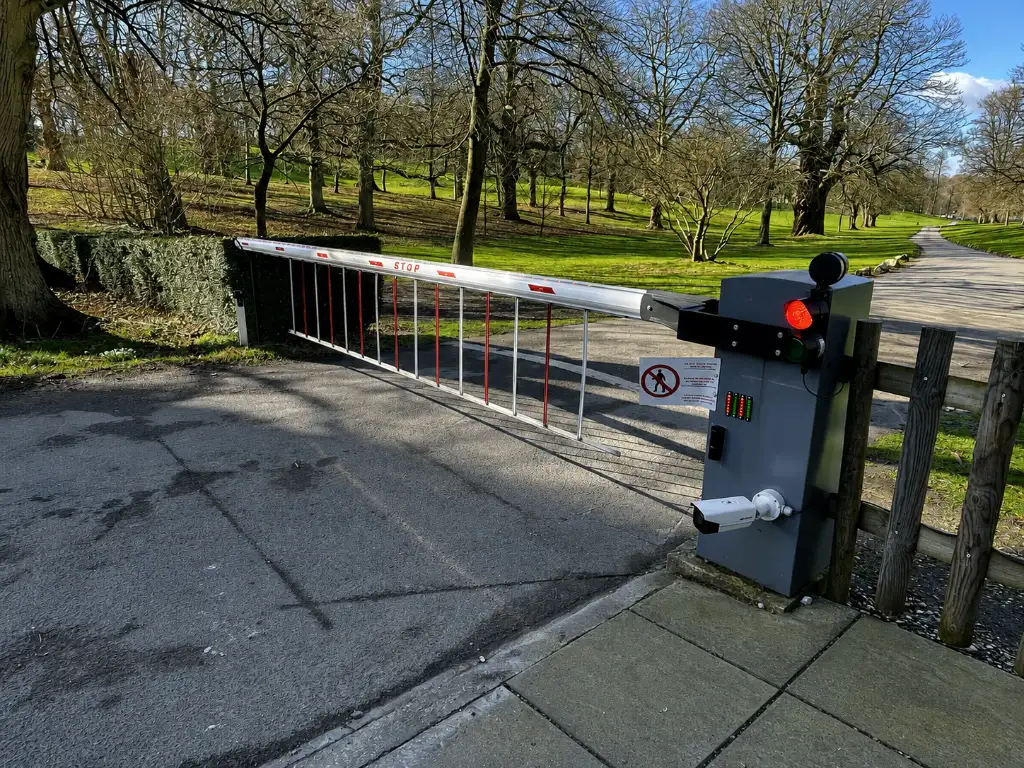

How the Boom Barrier - SOSEC 200 Works
The solar panel charges the battery, the controller receives instructions to open and close the access gate, as well as to check the safety sensors, and to raise and lower the RGB boom after the vehicle is through.
- Solar panels collect energy and charge the battery on board the vehicle.
- The controller is permanently powered and ready without the need of an external power connection.
- A key fob, code, card, app command, or intercom authorization is presented by a user.
- The five-metre boom is raised by the drive unit to release the lane.
- RGB lighting enhances the visibility of the boom in different traffic and site conditions.

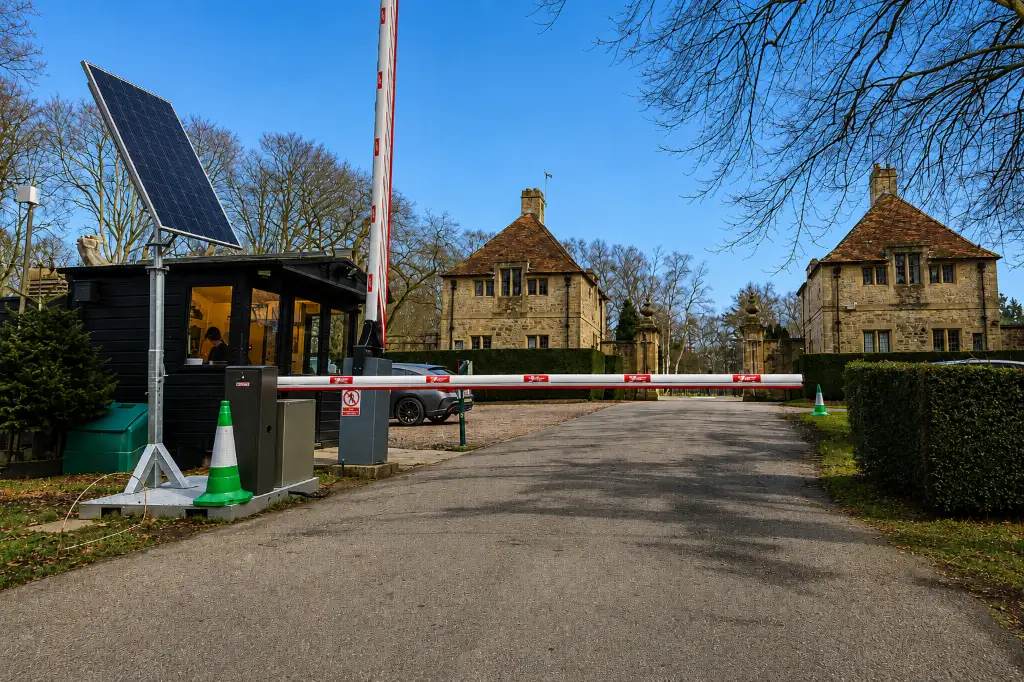

Your Trusted Boom Barrier - SOSEC 200 Partner in Saudi Arabia
Ideal for Boom Barrier - SOSEC 200 projects, Hitech Barrier is the perfect temporary access solution for site assessment, professional installation, testing, training and after-sales support across Saudi Arabia.
- Boom position, lane width, traffic pattern, access method matched with site assessment.
- Battery capacity is determined based on anticipated cycles, backup time and exposure to solar energy.
- Stable tread-plate mounting eliminates the need for permanent foundations for temporary deployments.
- Safety devices are set-up, installed and tested prior to commissioning.
- Accessories are available to complement the security workflow at each site.
Take the Step to Secure Your Access Point with a Boom Barrier - SOSEC 200 Now!
Get a custom quote for portable solar boom barrier - SOSEC 200 in Saudi Arabia, construction site, highway, mine, event, retail, or emergency access
Solar Boom Barrier, Portable Traffic Barrier, Construction Site Access Control, Emergency Vehicle Access, Temporary Boom Gate and Automatic Barrier Solutions in Saudi Arabia.
Frequently Asked Questions
The recommended battery configuration is dependent on daily cycle count, hours of operation, solar exposure, accessory load, required backup time and seasonal conditions.
Surface stability, wind exposure, traffic use and project safety requirements must be considered along with the 1.3 × 1.3-metre tread plate for temporary deployment.
The illuminated boom enhances visibility at controlled lanes and can be used to provide more effective traffic control under low light, emergency and site changing situations.
Yes. All intercoms, key fobs, keypads, swipe cards, auto-exit devices and telematics controls are compatible and can be integrated into the approved system design.
Actual capacity will depend on the size of the battery, solar charging, accessories used, boom settings, environmental conditions, maintenance, and the way the site is opened.
Backup suits are extended for remote locations, winter operation, minimal solar exposure or for critical access points where longer autonomous time between charging is required.
Depending on the end controller, network and app configuration, the compatible telematics offers visibility of the remote status and operational monitoring as well as selected control functions.
