Product Overview
Self Closing Safety Gates
- Self Closing Safety Gates are spring-loaded safety gate systems designed to protect access points, ladders, stairs, roof hatches, mezzanines, elevated walkways and restricted areas.
- These industrial safety gates automatically close behind users, helping minimize human error and maintain hazard protection at all times.
- Available in both single gate and double gate configurations, making them suitable for narrow as well as wide access openings.
- Delivered ready to install and only require mounting at site, reducing labor requirements and installation time.
- Designed for easy on-site adjustment and can be installed without welding or threading.
- Can be attached to new or existing tubular, square, flat or angle uprights and stringers using U-bolt fixing packs.
- Kee Gate style self-closing protection enhances safety around rooftops, industrial platforms, access ladders, machinery areas and maintenance zones.
Performance Standards & Compliance
The Self Closing Safety Gates system has been designed to meet the international workplace safety and fall protection requirements.
Self Closing Safety Gates Regulations & Requirements in Saudi Arabia
Self Closing Safety Gates provide enhanced workplace safety by securing unguarded openings and controlled access points in industrial, commercial, rooftop and maintenance areas. The spring-loaded closing system automatically closes the gate after each use.
-
OSHAOSHAMeets OSHA requirements for walking-working surfaces and fall protection, including top rail and mid rail load references.
-
ANSIANSIOffers safety design guidance for workplace openings, access points and guardrail applications.
-
Building SafetyIBCAssists in implementing building-related safety requirements for access control and edge protection systems.
-
Load CriteriaNBC / OBCImplements Canadian building and occupational safety loading requirements for guardrail and gate systems.
-
OHSCSA / Canada OHSSupports occupational health and safety requirements for access protection in industrial environments.
-
Edge SafetyEN 13374 Class AMeets temporary edge protection performance criteria for safer access and guarded opening applications.
-
ISO AccessEN ISO 14122 Parts 3 & 4Supports permanent means of access to machinery, including stairs, platforms, walkways and fixed ladders.
-
Corrosion TestASTM B117Supports corrosion resistance testing for galvanized and coated safety gate finishes.
Technical Specifications
| Product / System | Self Closing Safety Gates |
| System Type | Spring-loaded self-closing safety gate system |
| Gate Configurations | Single Gate and Double Gate options |
| Main Function | Automatically closes behind the user to maintain continuous protection |
| Site Installation | Fully adjustable on site; no welding or threading required |
| Mounting Method | U-bolt fixing packs for tubular, square, flat, or angle uprights/stringers |
| Single Gate Opening Range | 18 in to 48 in nominal, adjustable ±1.5 in |
| EU Single Gate Range | Up to 1,000 mm |
| Double Gate Opening Range | Up to 1,800 mm / 70.86 in |
| Installed Height | USA: 42 in / 1,067 mm; EU/Canada: 1,100 mm / 43.3 in, subject to local regulations |
| Material Options | Galvanized steel, aluminium 6082 T6/T4, and 316 stainless steel options |
| Finish Options | Hot-dip galvanized steel or Safety Yellow powder coat over galvanized substrate |
| Structural Loading | OSHA top rail: 200 lb / 890 N; OSHA mid-rail: 150 lb / 667 N |
| Double Gate Weight | Approx. 25 kg |
| Maintenance | Inspection by a competent person at least every 12 months |

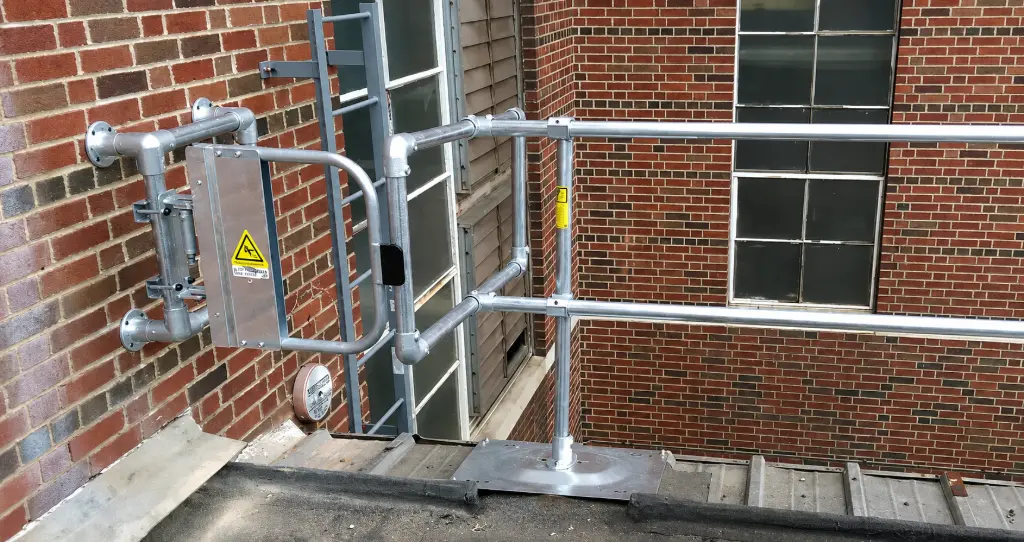

How Self Closing Safety Gates Work for Safety?
Self Closing Safety Gates close automatically through a spring-loaded hinge system, helping prevent access openings from being left unbarred.
- The user opens the gate to enter a ladder, stair, platform or maintenance area.
- The spring-loaded mechanism automatically closes the gate after each use.

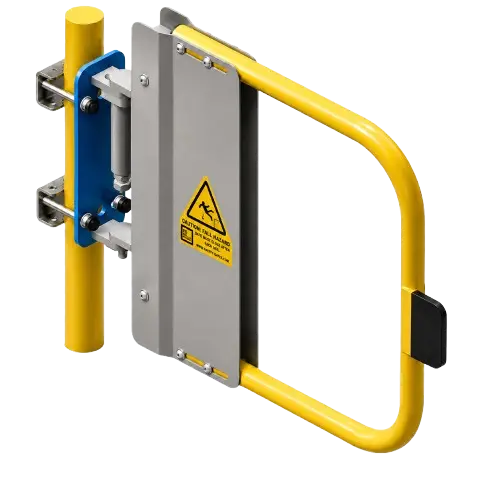

- Self closing safety gate hinges keep the gate closed and moving smoothly.
- Adjustable mounting allows the gate to fit different site opening sizes and upright profiles.
- The gate can work with existing guardrail or edge protection systems to create a continuous safety barrier.
- Self closing safety swing gates maintain protection without relying on manual closing at frequent access points.

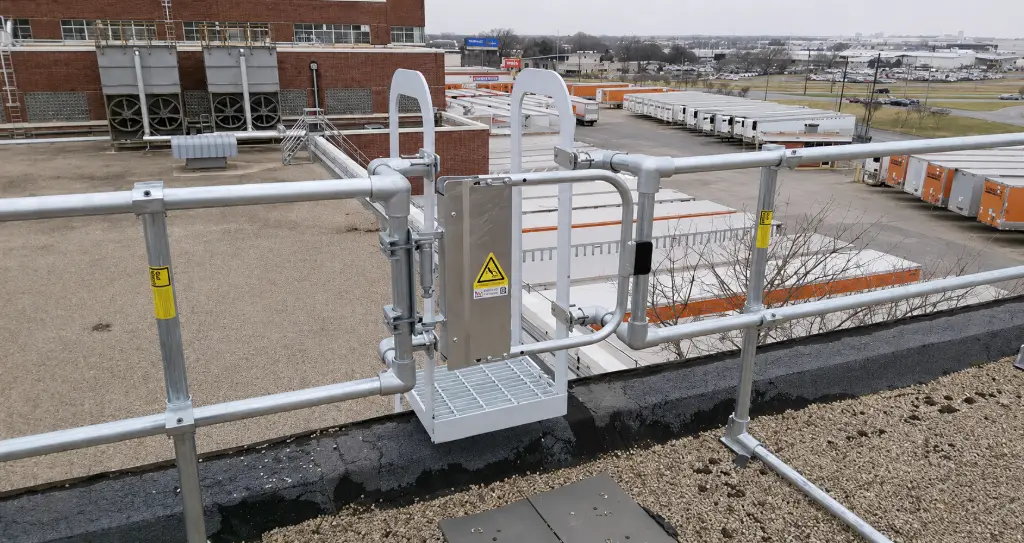

Reliable Self Closing Safety Gates for Industrial Safety
Self Closing Safety Gates offer reliable access security in industrial, commercial, rooftop and maintenance areas. These gates automatically close after each use and are suitable for high-frequency access points where open hazards must be controlled.
- Suitable for roof access points such as ladders, stairs, mezzanines, elevated walkways, roof hatches and machinery access areas.
- Helps prevent access openings from being left unprotected after use.
- Industrial safety gates support safer movement of workers, maintenance staff and inspection personnel.
- Kee Gate type self-closing gate systems provide an easy solution for edge protection and access control.
- Available in galvanized steel and Safety Yellow powder coated finishes for visibility and durability.
Secure your workplaces safe with self closing safety gates today
Get a Custom Quote — Self Closing Safety Gates for Safe Industrial Access Areas in Saudi Arabia.
Ensure workplace safety by installing self closing safety gates, industrial safety gates, Kee Gate style access protection, self closing safety gate hinges, and self closing safety swing gates on ladders, rooftops, stairs, platforms, mezzanines, walkways, roof hatches and restricted industrial areas.
