Roof Safety Rail System for Fall Protection in KSA

*Images are for illustrative purposes. Actual product appearance and specifications may vary.

Product Overview

Roof Safety Rail System for Fall Protection in KSA

  • Offers a safe fall protection system that is used on rooftops to assure worker safety and safety KSA standards in Saudi Arabia.
  • It is designed to be a freestanding guard rail system, which enables safe working along the edges of a roof, without using harnesses or active fall arrest systems.
  • Utilizes a non-penetrating method of installation, which will not cause damage to roof membranes and will also preserve the integrity of waterproofing in sensitive roofing structures.
  • Performs a passive safety guard and provides constant protection, without requiring user interaction or safety devices.
  • Applicable to many types of roof such as metal, membrane and concrete roofs, and flexible to different projects.
  • Constructed using robust materials to offer roof safety that is long lasting, minimizing the maintenance and stability of performance in harsh conditions.
  • Meets the international safety standards thus making it suitable to use in industry, commercial and maintenance in KSA.
Datasheet Request a Detail

Performance Standards & Compliance


The roof safety rail system meets international safety standards:

KSA Ready Performance Standards

Roof Safety Rail System Requirements in Saudi Arabia

The roof safety rail system is designed to meet recognized international safety, edge protection, access, and wind load compliance requirements for rooftop protection applications in Saudi Arabia.

Industrial Projects Commercial Roofs Maintenance Safety
Supports consultant submittals, project approvals, and rooftop safety compliance requirements across KSA.
  • OSHA 29 CFR 1910.29
    Guardrail and fall protection requirements for general industry applications.
    OSHA
  • OSHA 29 CFR 1926.502
    Fall protection criteria for construction environments and edge safety systems.
    Construction
  • EN ISO 14122 Part 3
    Safety requirements for permanent means of access, including guardrails and walkways.
    ISO
  • EN 13374 Class A
    Temporary edge protection standard suitable for flat and low-slope roof conditions.
    Edge Safety
  • BS 13700:2021
    British standard guidance relevant to permanent edge protection system performance.
    BS
  • HSE INDG 284
    Roof safety guideline covering safe access, edge protection, and work-at-height practices.
    HSE
  • AS/NZS 1170.2
    Wind load compliance for structural suitability in exposed rooftop environments.
    Wind Load

Technical Specifications

System Type Design Roof Compatibility Material Coating Standard Load Capacity Installation Color Options
System Type Freestanding Non-Penetrating Guard Rail
Design Cantilever Counterweight System
Roof Compatibility Flat roofs up to 5° slope
Material Hot-Dip Galvanized Steel
Coating Standard EN ISO 1461
Load Capacity Exceeds 200 lb/ft
Installation Tool-based (Torque Wrench / Hex Key)
Color Options Powder-Coated RAL Colors
*Technical specifications may vary depending on approved project requirements and system configuration.
Roof Safety Rail System

How the Roof Safety Rail System Works?

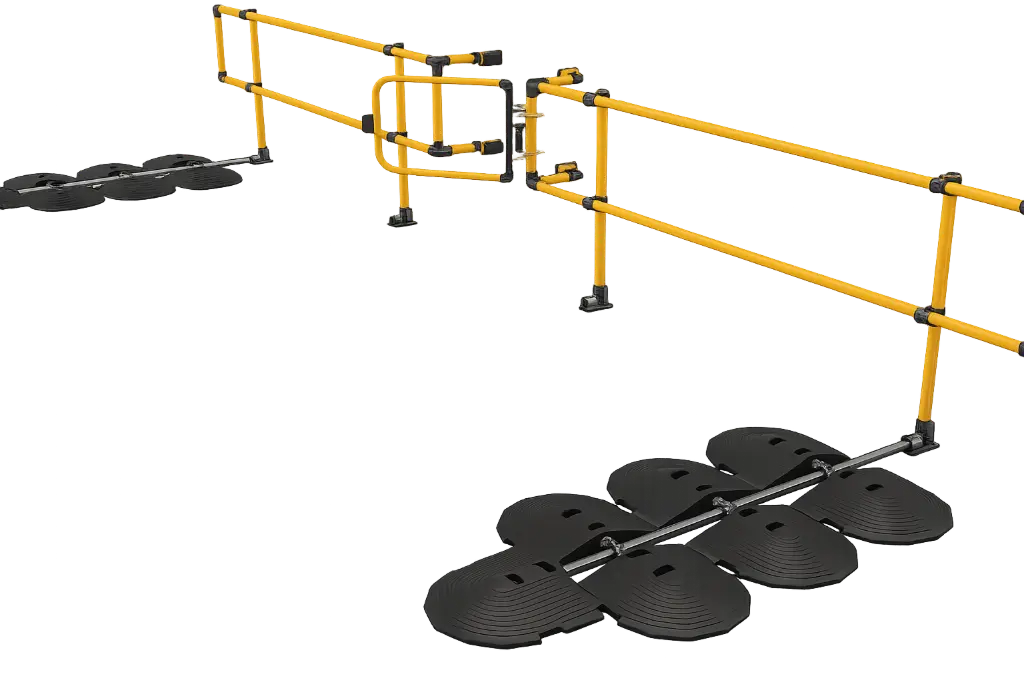

  • The system is a cantilever-based counterweight system that does not require fixing into the roof, thus stable.
  • The structure is held in place with heavy base weights.
  • Guard rails form a barrier of protective edge.
  • Different roof plans can be fitted with modular sections.
  • Constant protection is upheld along edges.
  • This enables the edge protection system to be safe and flexible in rooftop work.
Roof Safety Rail System Works
Freestanding Design Counterweight System Modular Sections Edge Protection

Smart Features of Roof Safety Rail for Edge Protection

Non-Penetrating Edge Protection System
Very Flexible Roof Safety System
Quick & Simple Installation
Smart Features of Roof Safety Rail System
Exceptional Corrosion Resistance to KSA Climate
Modular Guard Rail System Design (Flexible)
Eco-Friendly Counterweight System
Non-Penetrating Edge Protection System
Very Flexible Roof Safety System
Quick & Simple Installation
Exceptional Corrosion Resistance to KSA Climate
Modular Guard Rail System Design (Flexible)
Eco-Friendly Counterweight System
Reliable Roof Safety Rail Systems for KSA
Roof Safety Rail System

Reliable Roof Safety Rail Systems in KSA

  • Hitech Barrier delivers advanced roof safety rail systems designed for consistent fall protection and rooftop safety in KSA.
  • Constructed using high quality materials and non-penetrating design, the guard rails guarantee long service life, durability and low maintenance.
  • The system will offer reliable, compliant and cost-effective solutions to safe rooftop operations in industrial and commercial projects.
  • Full design, site survey and installation support is provided for complete project execution in KSA.
Installation

Roof Safety Rail Installation Process

The Roof Safety Rail system is installed through a structured process to ensure stable edge protection, safe rooftop operation, and compliance with project safety requirements.

01

Site Survey

Site survey and evaluate roof type and layout.

02

Position Marking

Positioning points and mark edge protection areas.

03

Base Unit Placement

Install counterweight base units atop the roof.

04

Post Installation

Install vertical posts and horizontal guard rails.

05

Secure Connections

None of the connections should be left without securing them with a torque or hex key.

06

Coverage Adjustment

Adjust system to maintain edge coverage all the way through.

07

Final Safety Check

Check stability and observe adherence to safety regulations. Conduct final safety checks prior to use of the system.

Start Your Edge Protection Project Today

Enquire Now — Reliable Roof Safety Rail & Edge Protection Systems in KSA.

+966 55 501 5798
sales@hitech.sa
Get a Quote

Ensure your rooftop safety with advanced fall protection, strong guard rails, and complete edge protection solutions across Saudi Arabia.

FAQs

Frequently Asked Questions


Yes, the roof safety rail system is crafted with a counterweight construction to remain firm under wind, heat, and dusty conditions in Saudi Arabia.

They are widely used on industrial roofs, commercial buildings, factories, construction sites, and solar panel installations to ensure safe rooftop work.

Yes, it is non-penetrating, simple to install, avoids damage to the roof surface, and requires minimal maintenance compared to conventional fixed rail systems.

Yes, the system does not require drilling, so it helps preserve the roof membrane and avoids leakage risks.

The roof safety rail system can be used on metal, membrane, and concrete roofs with slopes up to 5 degrees.

Yes, its modular design makes it suitable for both temporary project use and permanent long-term rooftop safety applications.

Minimal maintenance is required because the system uses galvanized materials with strong corrosion resistance, making it suitable for KSA conditions.
