Product Overview

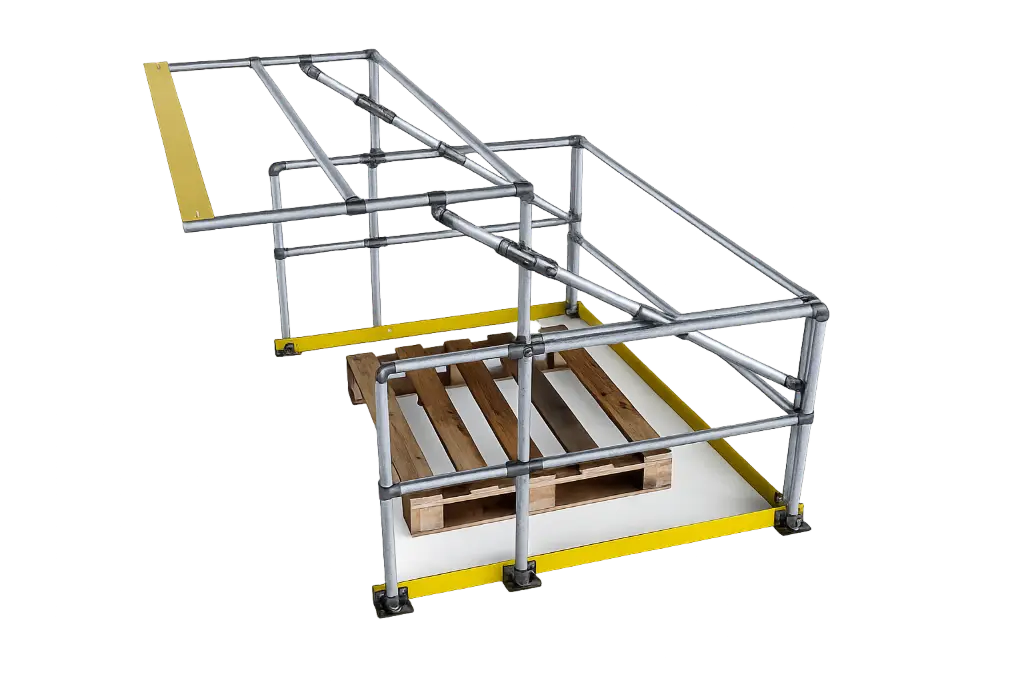

Pallets Safety Gate for Safer Pallet Transfer Solution
- Pallets Safety Gate is a practical hands-on pallet-transfer safety gate, which can help in the protection of employees while moving materials between floors.
- The system can be used to facilitate pallet loading and unloading on mezzanines, platforms, industrial work areas and warehouse areas in a safer way.
- By keeping a safety barrier with the pallet safety gate, the operator is kept protected when handling pallets.
- It is designed to be used with existing or new guardrail systems to help ensure guardrail protection during loading.
- The Pallets Safety Gate comes in a variety of configurations to suit the size of the pallets, loading depth and site type.
- The modular design enables the gate to be easily serviced, repaired and maintained in the busy warehouse environment.
- A perfect fit for industrial use where access points are elevated and pallet transfer safety systems have to be installed on the material transfer area.
Pallets Safety Gate Regulations & Requirements in Saudi Arabia
The Pallets Safety Gate offers reliable edge protection for loading areas such as mezzanine pallets, warehouse platforms and industrial transfer points. Maintains a barrier when pallets are moved from one level to another to reduce fall hazards
Pallets Safety Gate Regulations & Requirements in Saudi Arabia
The Pallets Safety Gate offers reliable edge protection for loading areas such as mezzanine pallets, warehouse platforms and industrial transfer points. Maintains a barrier when pallets are moved from one level to another to reduce fall hazards.
-
EN StandardEN 14122-3Provides permanent access and guardrail safety provisions.
-
OSHAOSHA RequirementsWorks to meet fall protection and walking working surface safety requirements in the workplace.
-
TÜVTÜV-Approved ComponentsParts used for quality, consistency and performance testing.
-
NA StandardsNorth American StandardsSystem described as tested in accordance with North American safety requirements.
Technical Specifications
| Product System | Pallets Safety Gate System |
| Tube Size | 42 mm nominal OD tube |
| Configurations | Standard, Double Depth, Double Width, Full Size |
| Standard Sizes | 6′×5′, 5′×9′, 8′×5′, 8′×9′ |
| Head Clearance | 6 ft 6 in / 1,981 mm |
| Handrail Height | 3 ft 6 in / 1,067 mm |
| Material Options | Galvanized steel or aluminum |
| Pivot Mechanism | Balanced counter-pivot system |
| Bearings | Sealed stainless steel bearings |
| Installation Method | Mechanical fittings, no welding required |
| Anchorage Method | Guardrail fittings or concrete/masonry anchors |
| Compliance | OSHA, ANSI, Ontario OHS |
| Steel Finish | Hot-dip galvanized to ASTM A123 |
| Aluminum Finish | 6063-T6 mill anodized aluminum |
| Safety Level | Collective passive fall protection |

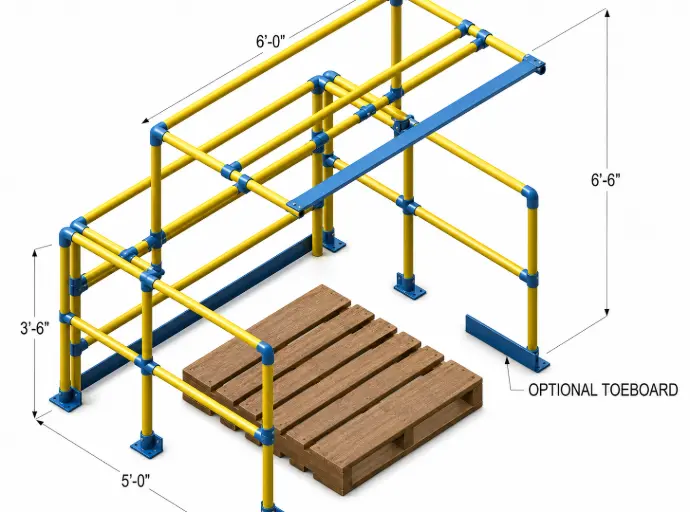

How Pallets Safety Gate Works for Safety?
The Pallets Safety Gate is designed to provide a safe transfer point for pallets at raised work surfaces. The gate is moved when a pallet is loaded or unloaded to prevent the operator from entering the area next to the open edge.
- The system is capable of transitioning between operating positions through the use of a gate mechanism.
- Smooth and reliable gate operation is provided by the hinges.
- A system to maintain guardrail protection during pallet transfer.
- The safety gate minimises edge exposure and operators can handle pallets.
- The modular design will enable the gate to be installed as a part of the existing railings.
- The system is suitable for storing in warehouses, factories, logistics centres and mezzanine areas.

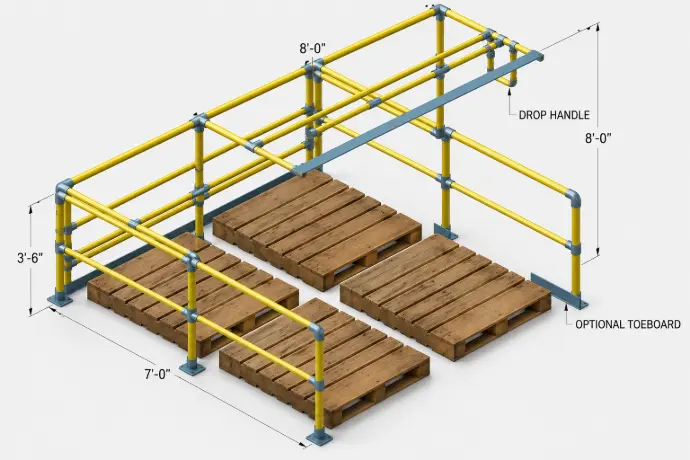

Reliable Pallets Safety Gate for Industrial Pallet Safety
Pallets Safety Gate is a practical solution for providing safety in workplaces where pallets are moved at height. Pallets moving close to the edge of the mezzanine in warehouses and industrial areas pose a significant fall hazard. This system will help minimize that risk by keeping a controlled barrier present when loading and unloading.
- Ideal for mezzanine floors, elevated platforms, warehouses and industrial storage facilities.
- Aids to safeguard workers throughout movement of pallets between various levels.
- Multiple layouts for different site requirements.
- Modular design simplifies servicing and replacement.
- Can be used as part of complete pallet transfer safety systems.
- The controlled protection of pallets is possible in this way, which is a practical solution.
Protect Your Pallet Transfer Areas with Pallets Safety Gate Today
Request a quote for Pallets Safety Gate and pallet-transfer safety solutions for Saudi Arabia warehouses, mezzanines, warehousing and logistics facilities,
and industrial facilities.
Ensure Workplace safety and efficiency with a reliable Pallets Safety Gate for safe handling and edge protection and controlled material movement at height.
