Product Overview

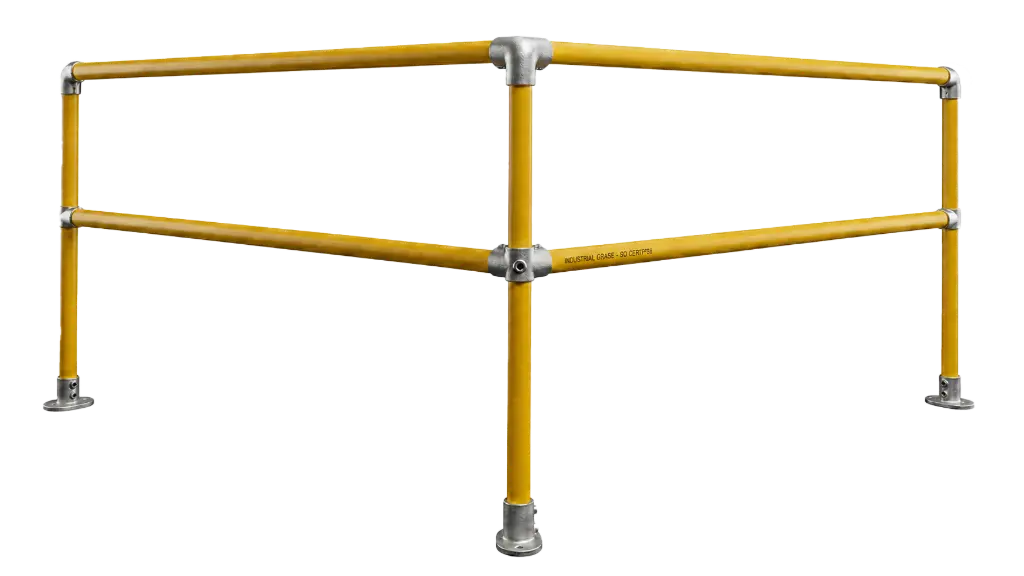

Kee Kwik Railing Kits for Safer Work Zones
- Railing Kits are prepared modular safety railing kits designed to secure walkways, platforms, stairs, ramps, loading areas, and restricted work areas.
- Railing Kits are constructed for fast installation without welding, bending, or threading on site.
- The Kwik Kit system consists of straight kits, corner kits, and extension kits to fit various project layouts.
- These safety railing kits are customizable according to site size, access routes, and safety considerations.
- The Safety Yellow finish provides high visibility and helps mark edges, walkways, hazards, and protected areas.
- Kits help support safer movement in industrial, commercial, warehouse, and aviation work areas.
- These modular Kwik Kit railing systems can be used for both interior and exterior applications on concrete slabs and structural steel decks.
Performance Standards & Compliance
The kee kwik railing kits meets international safety standards:
Railing Kits Regulations & Requirements in Saudi Arabia
Railing Kits are engineered to support workplace safety railing needs for industrial, commercial, and access control applications. The system uses tested modular guardrail components to provide reliable edge protection and structural performance.
-
OSHAOSHA 29 CFR 1910.23Supports workplace guardrail and walking-working surface safety requirements.
-
Building CodeIBCSupports railing and access safety needs related to buildings.
-
Safety DesignANSIProvides safety design references for workplace railing systems.
-
Barrier LoadBS 6180Supports line-load performance requirements for barrier systems.
-
CertifiedTÜV Certified ComponentsSupports tested quality of modular connectors and railing performance.
-
SpecificationCSI 077200Supports roof accessories and safety railing specification references.
Technical Specifications
| Product / System | Kee Kwik Railing Kits Pre-assembled modular guardrail kit |
| System Type | Modular Safety Railing Kits No welding, bending, or threading required |
| Kit Configurations | Straight, Corner, Extension Kits 12 ft kits and 6 ft extension kits |
| Material Options | Galvanized Steel / Aluminium Steel and aluminium models available |
| Finish | Safety Yellow Powder Coat High-visibility finish for hazard awareness |
| Rail Height | 42 in / 1,067 mm Top rail above finished floor |
| Mid-Rail Position | Midpoint Height Between top rail and finished floor |
| Pipe Diameter | 42 mm OD Project-specified pipe diameter |
| Section Length | 6 ft / 1.83 m Field-cuttable rail tube |
| Structural Load | Top Rail ≥ 200 lbf Mid-rail ≥ 150 lbf |
| Set Screw Torque | 29 ft.lbf / 39.3 N.m Recommended tightening torque |
| Base Option | Type 62-8 Flat-Plate Flange Bolt or chemical anchor by others |
| Removable Option | Type 66 Ground Socket For removable upright posts |
| Accessories | Toe Board / Variable Angle Suitable for ramps, stairs, and extensions |

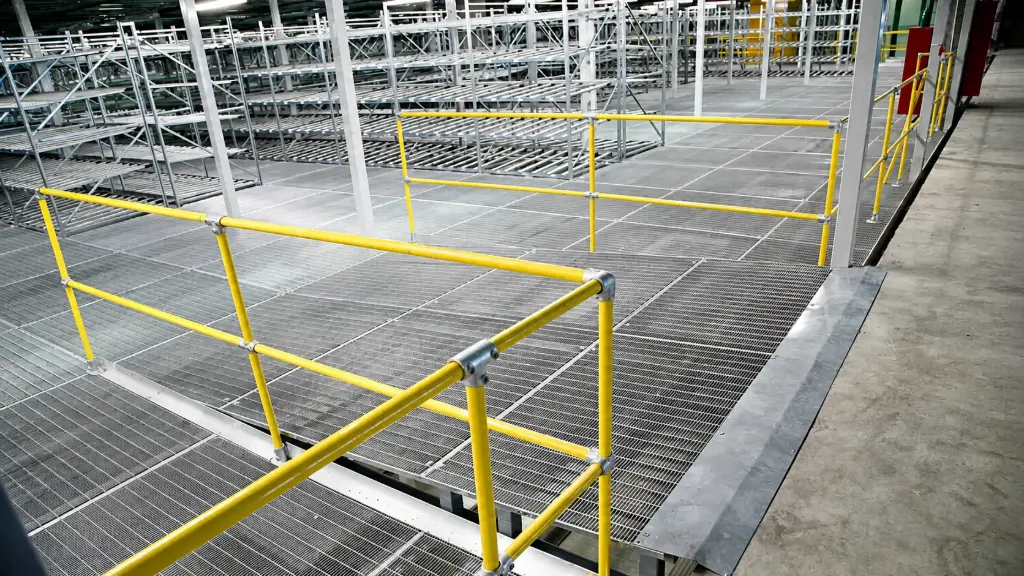

How Kee Kwik Railing Kits Work for Safety?
Railing Kits operate through the combination of pre-assembled uprights, modular rails, flanges, and set-screw connections to form a complete safety railing system. The components are designed for quick assembly, reducing installation time and eliminating the need for hot works.
- Ready-made uprights make site installation easier and faster.
- Kwik Kit sections allow straight, corner, and extension layouts for different project requirements.
- Safety Yellow coating improves visibility around edges, walkways, and protected areas.
- The railing system is secured with set screws without welding or threading.
- Variable angle options support stairs, ramps, and sloping access paths.

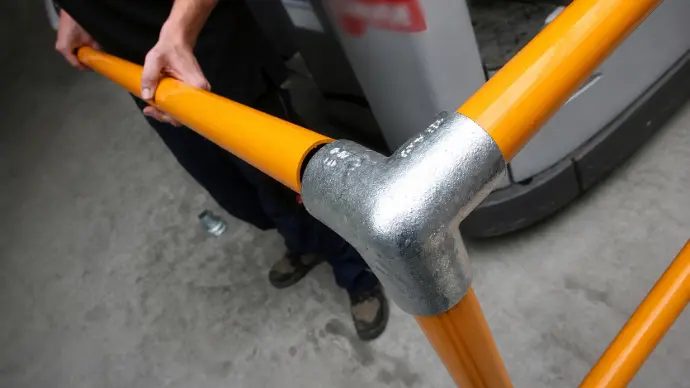

Reliable Railing Kits for Industrial Safety
Railing Kits offer a cost-effective modular guardrail system for workplaces that require high visibility, reliable edge protection, and flexible modular safety layouts. The Kwik Kit system is an engineered safety barrier designed to control access routes, define safe zones, and improve movement around industrial work sites.
- Suitable for manufacturing, warehousing, aviation, rooftops, platforms, and walkways.
- Ready-to-erect uprights help save installation time at the project site.
- Yellow finish helps clearly identify edges, hazards, and restricted areas.
- Modular kits can be used to create straight runs, corners, and continuous extensions.
- Rails can be field-cut to match the actual site dimensions.
Secure Your Work Areas with Railing Kits Today
Get a Custom Quote — Railing Kits Safe Access Areas in Saudi Arabia
Improve the safety of the workplace using Railing Kits, modular safety railing kits, and high-visibility Kwik Kit guardrail systems on platforms, walkways, stairs, ramps, warehouses, and access points in industrial settings
