Lifeline Safety Systems for Industrial | Fall Protection in Saudi Arabia
*Images are for illustrative purposes. Actual product appearance and specifications may vary.
Product Overview

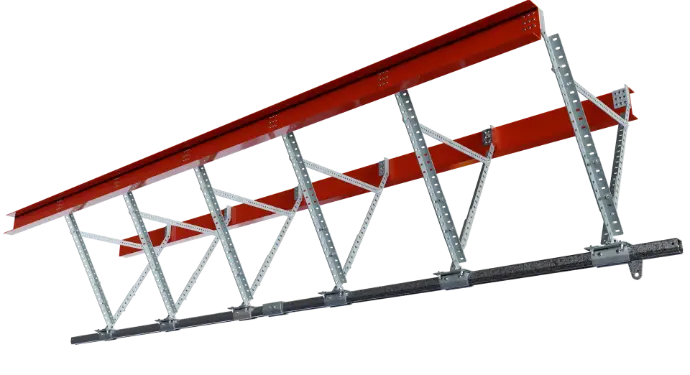

Lifeline Safety System for Industrial Fall Protection
- Lifeline Safety systems offer overhead rigid rail fall protection in industrial, aviation, transport maintenance, logistics and warehouse settings.
- Rigid rail system is used where short fall arrest distance is needed and where fall clearance is minimal.
- Lifeline Safety assists in safer movement of workers who are on the use of a safety harness and lifeline connection during maintenance and inspection activities.
- Installation of the system may be parallel or perpendicular to purlins, depending on the requirements of the roof structure and the location.
- The smooth trolley system also operates on the rigid rail where workers can be moved without having to keep on reconnecting to the system.
- The Roof Life Line system has the potential to support up to four simultaneous users, depending on configuration and the conditions on-site.
- Lifeline Safety systems can be used both indoors and outdoors with hot-dip galvanised mild steel construction to provide corrosion protection.
Performance Standards & Compliance
The lifeline safety system meets international safety standards:
Lifeline Safety Requirements in Saudi Arabia
The Lifeline Safety system is intended to assist fall protection needs in industrial, aviation, transport, logistics and rooftop maintenance settings. The system employs the rigid rail design to minimise the fall distance, limit the swing risks and enhance the movement of workers in those areas where fall clearance is minimal.
-
Anchor DevicesEN 795:2012 / CEN/TS 16415:2013Supports anchor devices to be used by one or more users simultaneously.
-
Multi-UserBS 8610:2017Supports anchor systems intended to be used in single-user and multi-user fall protection applications.
-
Personal Fall ProtectionOSHA 29 CFR 1910.140Addresses performance standards, care standards, and use standards of personal fall protection systems.
-
Construction SafetyOSHA 29 CFR 1926.502Supports fall protection system requirements for construction-related applications.
-
GalvanisingBS EN ISO 1461 / SIC 109Offers hot-dip galvanising needs to protect steel against corrosion.
Technical Specifications
| Product / System | Lifeline Safety System Overhead rigid rail fall arrest system |
| System Type | Rigid Rail Fall Protection For industrial, aviation, transport, and logistics use |
| Configuration | Modular Rigid Rail Parallel or perpendicular to purlins |
| Rail Layout | Straight-Line Runs Only Based on approved site layout |
| Maximum Users | Up to 4 Users Subject to configuration and site conditions |
| User Weight | 140 kg Per User Maximum user weight limit |
| Free-Fall Distance | 600 mm Maximum With correctly positioned lanyard or retractable device |
| Lanyard Offset | 30 Degrees Maximum Maximum offset from vertical |
| Service Life | Up to 25 Years With annual maintenance and standard usage |
| Primary Material | Mild Steel Used throughout the system |
| Surface Finish | Hot-Dip Galvanised To BS EN ISO 1461 / SIC 109 |
| Environment | Indoor and Outdoor Galvanised protection supports external installation |

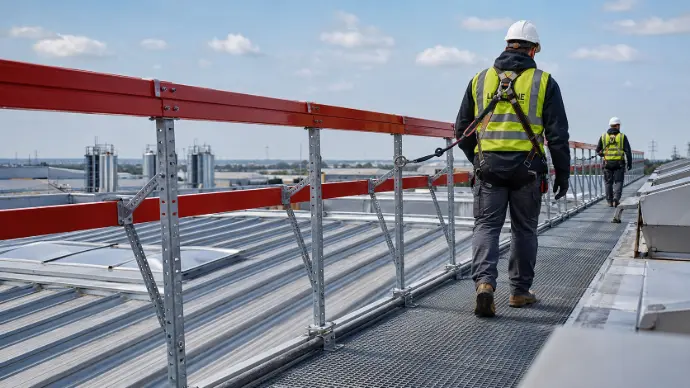

How Lifeline Safety Systems Work for Fall Protection?
The Lifeline Safety system operates on the principle of an overhead rigid rail into which a travelling trolley is connected to the overhead rigid rail. The trolley is riding on the rail, and the user is able to work across the area being covered, and continuous fall protection is provided.
- The inflexible rail limits reduce the fall distance and aid in minimizing the impact forces.
- The trolley system has closed bearings that allow the movement of workers easily.
- Lifeline Safety systems are used to minimize the pendulum swing over that of flexible cable systems.
- The system helps to provide safer access around trains, trucks, aircraft, and machinery as well as logistics areas.
- The Roof Life Line construction can be fixed to the existing purlins or secondary steelwork.

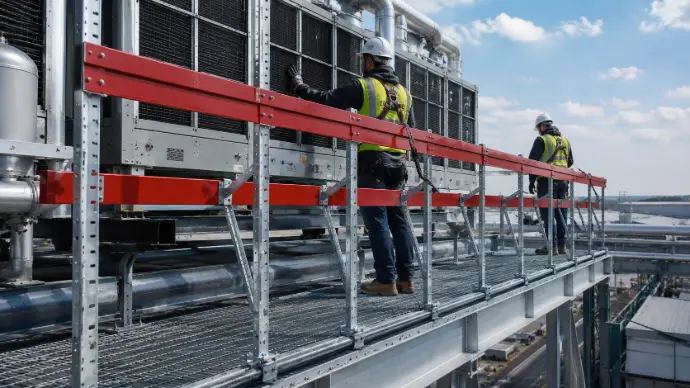

Trustworthy Lifeline Safety in Work Areas of Industries
Lifeline Safety offers a managed overhead fall protection system to work areas where the floor space should be kept clear and the fall clearance is restricted. The system is particularly helpful in aviation, transport maintenance, logistics, warehousing and manufacturing settings.
- It is intended to work around aircraft, trains, trucks and industrial equipment.
- Rigid rail mounted on the roof also contributes to the maintenance of open areas of the floor to conduct operations.
- The system can be connected to the available purlins or secondary steelwork.
- Lifeline Safety systems decrease the distance of fall of workers and facilitate safer movement.
- Modular design enables future modification, and extension, or relocation.
