Automatic Barrier - B680H: High-Speed |
Vehicle Access Control in Saudi Arabia
*Images are for illustrative purposes. Actual product appearance and specifications may vary.
Product Overview

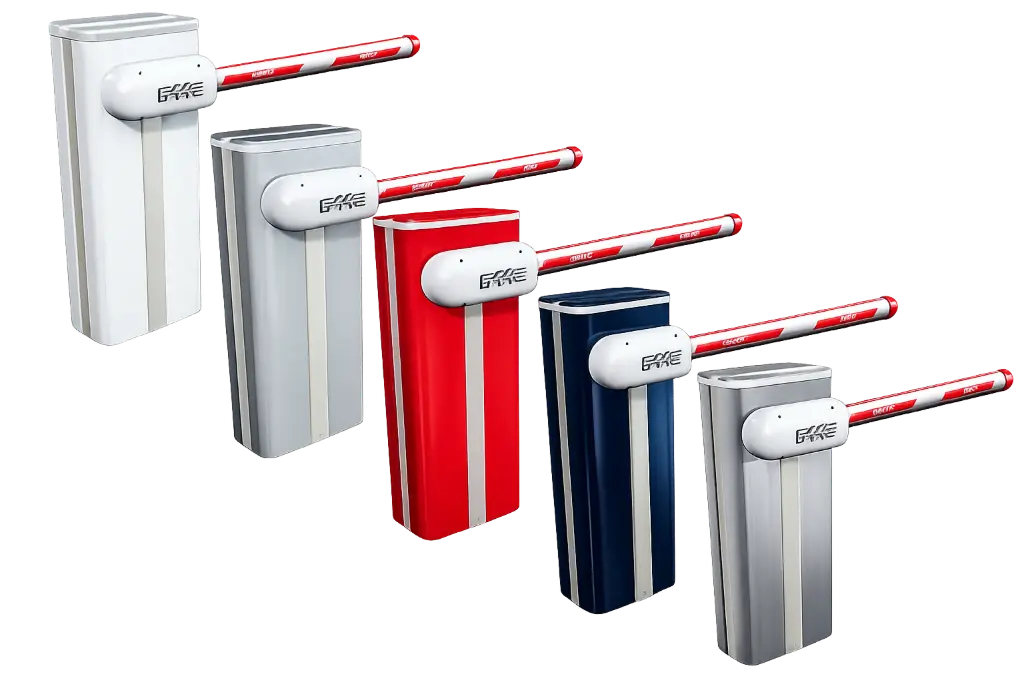

Automatic Barrier - B680H for Secure Access in Saudi Arabia
- Built for continuous and secure vehicle access in Saudi Arabia, the Automatic Barrier - B680H is a 24V hybrid hydraulic automatic barrier designed for reliable operation in high-traffic environments.
- It can be used for beam lengths of up to 8.3 meters, suitable for large entrances, logistics areas, commercial gates and industrial gates.
- Opening time can be varied from 1.5 seconds to 6 seconds, which is beneficial in reducing congestion in access points of busy projects such as automatic car park barrier systems.
- Brushless motor design is ideal for heavy duty use, assuring over 2,000,000 cycles of operation and easy maintenance.
- Obstacle detection improves operational safety by reversing the movement of the barrier if resistance is encountered while traveling the barrier.
- Smart automatic barrier gates installation is achieved thanks to an integrated compatibility with traffic lights, loop detectors, GSM, Ethernet and Wi-Fi.
- LED-lit beam, rubber bumper and emergency battery backup enhance safety, visibility and uptime when the power goes out.
- The automatic gate barrier can match the requirements of commercial, residential and government projects with stainless steel and powder-coated housing.
Performance Standards & Compliance
The automatic barrier B680H meets international safety standards:
Automatic Barrier - B680H Requirements in Saudi Arabia
The automatic boom barrier FAAC B680H is built for high-performance access control systems where security, reliability, and integration are paramount. It has a specification profile to offer continuous duty and obstacle response along with IP56 protection and smart connectivity for challenging Saudi installations.
-
Access Control IntegrationWorks with loop detectors, traffic lights, GSM, Ethernet and Wi-Fi for vehicle authorization monitoring.
-
IP56Electrical & Environmental ProtectionThe unit is protected by the dust, heat and outdoor operating conditions by IP56 rated construction.
-
Emergency Safety FunctionalityReverse-on-obstacle response and optional XBAT 24 battery backup enhances safety during interruptions.
-
100%Heavy-Duty Performance ComplianceDesigned for high traffic usage, it is a 100% continuous-use design to support extensive traffic volume in high demand facilities and infrastructure entrances.
Technical Specifications of Automatic Barrier - B680H
| Feature | Specification |
| Model | FAAC B680H |
| Type | 24V Hybrid Hydraulic Barrier |
| Maximum Passage Width | Up to 8 m |
| Maximum Beam Length | 8.3 m |
| Opening Speed | 1.5 sec to 6 sec |
| Duty Cycle | 100% Continuous Use |
| Motor Type | 36V DC Brushless Motor |
| Life Cycle | Over 2,000,000 Cycles |
| Safety System | Reverse on Obstacle Detection |
| Protection Rating | IP56 |
| Operating Temperature | -15°C to +65°C |
| Beam Type | Round or Elliptical |
| Backup Option | XBAT 24 Emergency Battery |
| Housing Options | Steel or Stainless Steel |

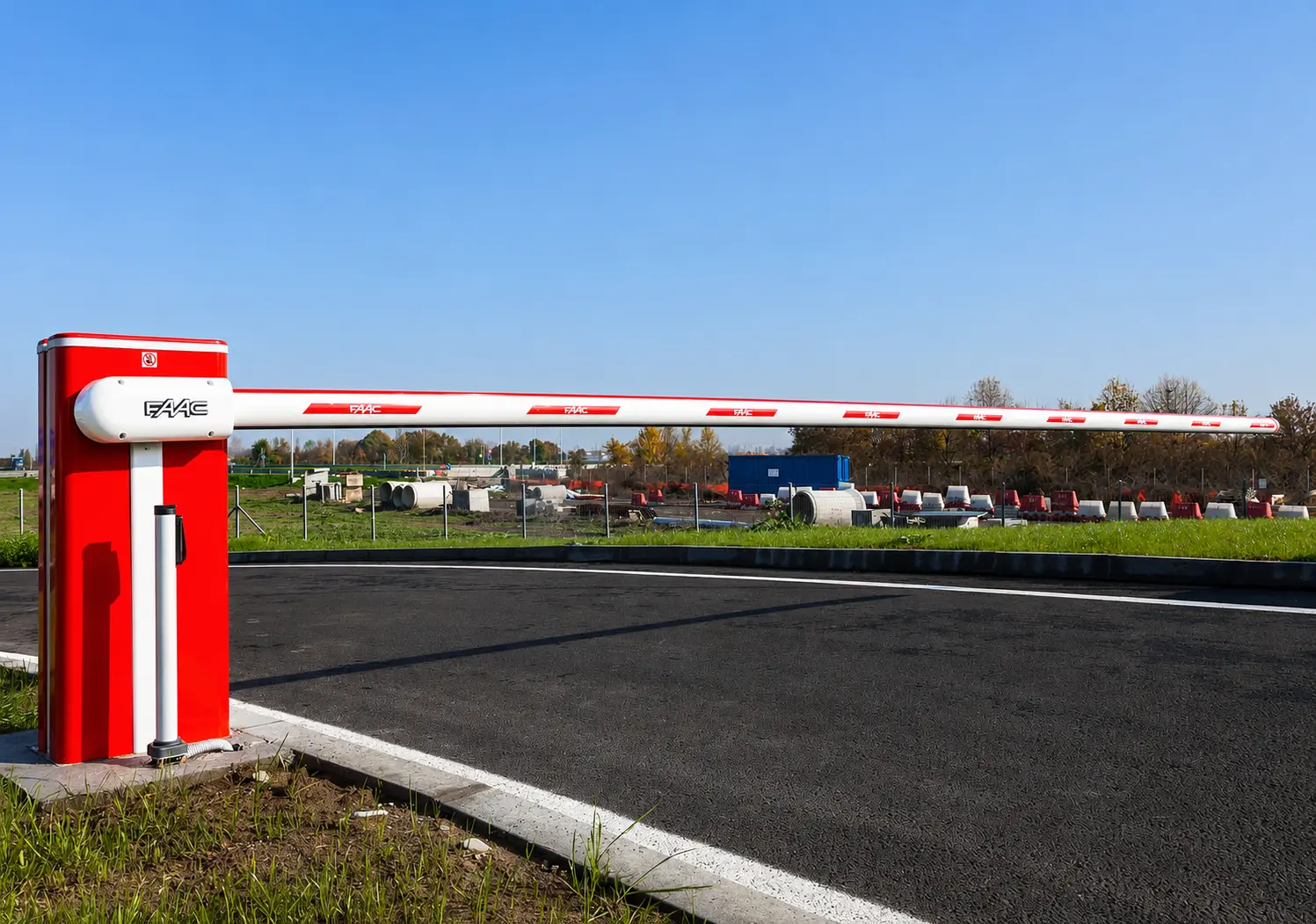

How Automatic Barrier - B680H Works
The automatic barrier B680H is controlled by an intelligent barrier control system that confirms the entry of vehicles, extends the boom arm, regulates safe entry and exit and resets after every movement for safe and efficient traffic control.
- An authorization signal is sent to the access control system which will then trigger automatic barrier operation.
- The control unit checks the request and indicates if the car can enter.
- The boom arm rises gently at a preset rate to let controlled vehicles pass.
- The barrier allows for efficient traffic flow as vehicles are allowed through the secured lane.
- All safety sensors are advanced sensors, constantly scanning for obstacles and safe barrier movements.
- When an obstruction is detected when attempting to close, the barrier automatically reverses direction.

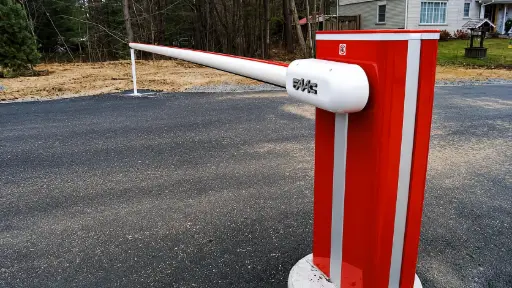

Reliability Assurance & Performance Excellence of Automatic Barrier - B680H
The B680H is designed for daily reliable access control. It has continuous duty performance and brushless motor operation, which provides stable performance when operating in challenging sites, while also providing a strong environmental protection. Hitech Barrier in Saudi Arabia is the best supply, integration and project support.
- Stable performance with high daily vehicle cycles.
- Minimizes wear using hybrid hydraulic engineering.
- Gives long service life (above 2,000,000 cycles).
- Works well in hot, dusty, outdoor conditions.
- Improves site safety with obstacle response logic.
- Seamlessly integrates with smart access control platforms.
Start Your Automatic Barrier - B680H Project Today!
High performance automatic boom barrier for modern projects in Saudi with smooth, secure and intelligent vehicle access control throughout the facility.
Call our experts today to get the most up-to-date price for the FAAC B680H automatic barrier, and a solution customised to your facility. Compare competitive prices depending on your project needs, installation range and customization requirement.
Frequently Asked Questions
The continuous duty operation, protection against dust and water up to IP56, rapid opening and smart integration make it the perfect choice for harsh climate and heavy use entry points in Saudi Arabia.
This automatic boom barrier is engineered for heavy duty applications with more than 2,000,000 cycles and adjustable opening speeds for commercial/industrial traffic flow applications.
It can be used for automatic car park barrier and parking automation applications, and it can be used with loop detectors, traffic lights, and communication.
The beam length of up to 8.3 m can accommodate the wider vehicle lane that is frequently found in logistics, industrial and perimeter access applications.
They feature reverse-on-obstacle sensing, optional LED beam visibility and emergency battery backup for safer driving in everyday traffic conditions.
The B680H is suitable for controlled vehicle entry in paid parking, staff parking, visitor access and in mixed-use developments.
The barrier comes in steel or stainless steel housing and can be any color to fit project aesthetics and environmental needs.
Hitech Barrier gives supply, installation and integration support as well as after sales service to automatic barrier deployment with reliable service for Saudi projects.
