Rooftop Lifeline Systems

*Images are for illustrative purposes. Actual product appearance and specifications may vary.

Product Overview

Why Are Rooftop Lifeline Systems Essential for Saudi Arabian Worksites?

  • Affordably reduces fall risks when working on the rooftop while avoiding damage to the building.
  • A variety of options are available for membrane, standing seam, profiled metal and structural roof lifeline designs.
  • The non-penetrating option helps protect the roof from damage and leaking while providing a safe horizontal lifeline.
  • Complies with OSHA, ANSI Z359 and EN 795 Kee Line safety standards for total fall protection.
  • The innovative design ensures reliable fall protection with minimal load on the rooftop structure in case of a fall.
  • Ideal for industrial, commercial and government structures that demand high levels of rooftop lifeline safety.
  • Enhances rooftop safety with durable and safe horizontal lifeline cables for various height safety applications.
Datasheet Request a Detail

Performance Standards & Compliance


The rooftop lifeline system meets international safety standards:

KSA Ready Performance Standards

Rooftop Lifeline System Regulatory & Safety Requirements in Saudi Arabia

The Kee Line safety system is compliant with the safety regulations in Saudi Arabia and offers a safe solution to access roofs, carry out maintenance operations and protect industrial and commercial buildings.

Industrial Buildings Commercial Roofs Maintenance Access
  • OSHA Code 1910.140(c)(11-22)
    Standards for personal fall protection systems and horizontal lifeline hardware.
    OSHA
  • EN 795:2012 & CEN/TS 16415:2013
    European requirements for anchor devices and multi-user roof lifeline setups.
    EN
  • ANSI Z359 & CSA Z259
    American standards for engineered rooftop lifeline fall arrest systems.
    ANSI / CSA
  • ISO 9001
    Provides systematic quality control for Kee Line components.
    Quality

Technical Specifications

Product Type Main Function Wire Rope Material Wire Rope Size Breaking Strength Post / Upright Size Maximum Span User Capacity Safety Features
Product Type Engineered Horizontal Lifeline fall protection system
Main Function Safe rooftop movement with continuous Kee Line safety tie-off
Wire Rope Material AISI 316L stainless steel (Marine Grade)
Wire Rope Size 8 mm (5/16 in.) diameter; 7x7 or 1x19 construction
Breaking Strength Minimum breaking strength of more than 37 kN
Post / Upright Size 42 mm OD galvanized carbon steel tube
Maximum Span 39 ft (11.9 m) between posts; up to 100 ft for overhead
User Capacity Supports up to 3 users per Roof Lifeline span
Safety Features In-line shock absorber with visual tension & deployment indicators
Pass-through Kit Grade 316 stainless steel two-wheeled pass-through traveller
Roof Compatibility Membrane, metal sheet, standing seam, concrete, and steel
Compliance Meets OSHA, ANSI Z359, CSA Z259, and ISO 9001 standards
*Technical specifications may vary depending on approved project requirements and system configuration.

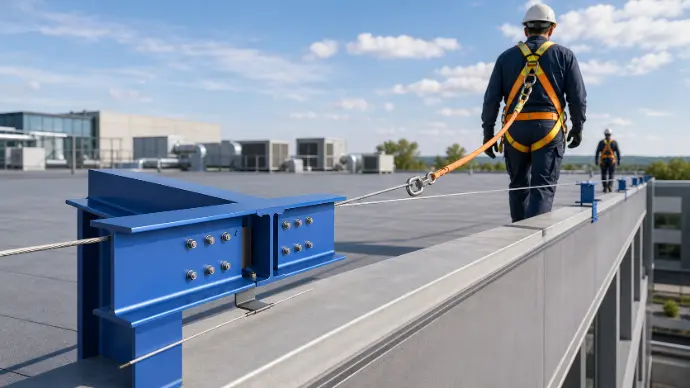

Rooftop Lifeline System

How Does a Rooftop Lifeline System Work?

The Rooftop Lifeline system offers a constant fall protection system for roof workers. It keeps workers connected to a Horizontal Lifeline while they work. It provides continuous, compliant fall protection when undertaking critical work on different types of industrial roofs engineered to meet OSHA, ANSI Z359, and EN 795 safety standards.

  • Hands-free movement through a continuous connection to the wire lifeline.
  • Kee Line includes an absorber to cushion the impact of a fall.
  • Two-wheel traveller moves easily on Horizontal Lifeline brackets for hands-free use.
  • Roof Lifeline can be mounted to concrete, steel or metal sheets with appropriate anchors.
  • Rooftop Lifeline can support up to three workers for team collaboration.
Rooftop Lifeline System
Hands-Free Movement Shock Absorber Horizontal Lifeline Team Safety

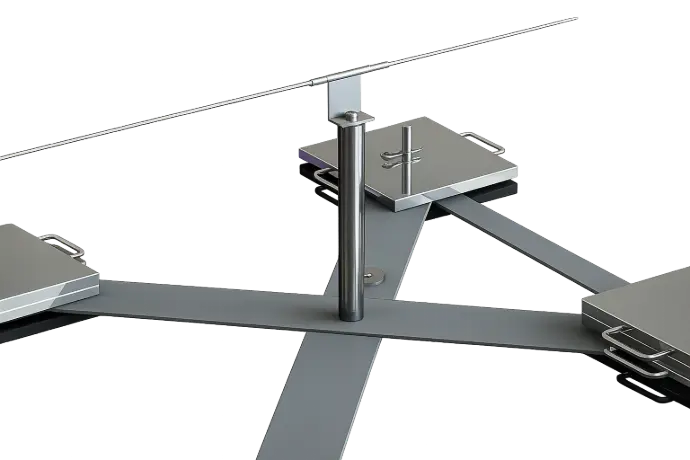

Functional Highlights of the Rooftop Lifeline

Continuous Connection: No need to un-hook to move around.
Marine Grade Steel: Stainless steel for corrosion resistance.
Heavy Duty: Three-person load capacity.
Functional Highlights of the Rooftop Lifeline
Flexible Spans: Large distances between support posts.
Compatible with all roofs.
Status Indicators: Visual system status.
Continuous Connection: No need to un-hook to move around.
Marine Grade Steel: Stainless steel for corrosion resistance.
Heavy Duty: Three-person load capacity.
Impact Reduction: Minimizes the effects of falls.
Flexible Spans: Large distances between support posts.
Compatible with all roofs.
Status Indicators: Visual system status.

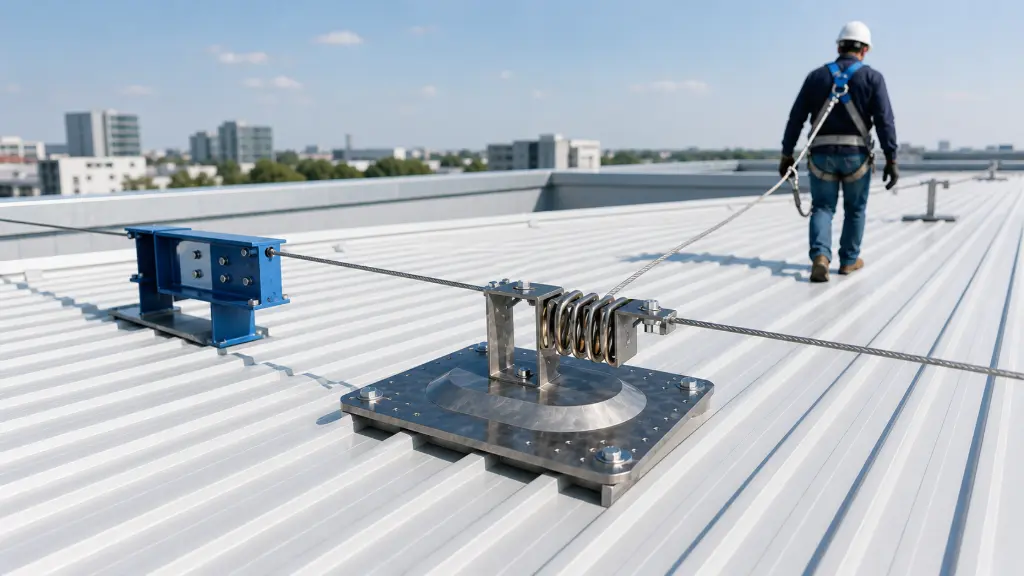

Reasons to Choose Hitech Barrier
Rooftop Lifeline Systems

Reasons to Choose Hitech Barrier for Rooftop Lifeline Systems

Hitech Barrier is dedicated to supplying top-quality Rooftop Lifeline and Horizontal Lifeline systems for the Saudi Arabian market. Our Kee Line safety systems provide the highest level of protection for workers and are durable and easy to use.

  • Customized design: Each Rooftop Lifeline is engineered to provide optimal safety solutions for your structure.
  • Premium materials: Marine-grade stainless steel ensures your Roof Lifeline is built to withstand the desert environment.
  • Certified compliance: All Horizontal Lifeline systems comply with international OSHA, ANSI, and EN safety standards.
  • Easy access: Our extensive presence in Riyadh, Jeddah and Dammam means we are always close at hand.
Installation Guide

Rooftop Lifeline System Installation Process

Installing a Horizontal Lifeline is not an arbitrary process and is vital for long-term Kee Line safety. Our expert installers have a clear process to install a safe Rooftop Lifeline that complies with international standards and safeguards the building structure.

01

Site Assessment

We inspect the roof type and construction to determine the optimum Roof Lifeline route.

02

Post Installation

Strong posts are attached to the structure, or weighted blocks for a Horizontal Lifeline.

03

Wire Deployment

The marine-grade 8mm stainless steel wire is deployed through the Kee Line safety brackets.

04

Safety Absorber

In-line absorbers are connected to control the forces in case of fall.

05

Tensioning the Line

The Rooftop Lifeline is visually tensioned for optimum safety.

06

System Testing

Our team conducts pull tests to ensure the Horizontal Lifeline is safe and stable.

07

Certification

We document and train operators on the new Kee Line safety system.

Start Your Rooftop Lifeline Safety Project Today

Request a Quotation — Advanced Lifeline Systems for reliable fall protection and safe rooftop access in Saudi Arabia

+966 55 501 5798
sales@hitech.sa
Get a Quote

Maximize safety with reliable lifeline systems, anchor points and continuous fall protection for working at heights and safe access in Saudi Arabia

FAQ Section

Frequently Asked Questions


The system incorporates a pass-through traveller that can slide along the lifeline, keeping the worker connected without the need to disconnect.

The rooftop lifeline system requires annual inspection by a certified engineer to verify tensioning, anchorage integrity, and compliance with OSHA, ANSI Z359, and EN 795 standards. Hitech Barrier provides yearly inspection and recertification services across Riyadh, Jeddah, and Dammam.

Yes, it can be installed on membrane roofs, standing seam metal roofs, concrete slabs and steel roofs, so it can be used on most buildings.

The system features an in-line shock absorber that will limit impact forces to both the user and structure in the event of a fall.

The marine-grade stainless steel wire rope and galvanized parts are resistant to corrosion, making the system suitable for extreme environments.

Up to three users can use each span, with spans of up to 39 ft between posts, allowing safe coverage of large rooftop spaces.

Correct tensioning, anchorage, and adherence to standards during installation, and annual inspections, ensure a reliable and safe system.
